Compressed air treatment using dryers and line filters removes moisture, oil, particles, and contaminants, preventing equipment damage and ensuring reliable operation. Air dryers reduce the dew point to eliminate water vapor, stopping condensation that leads to corrosion and freezing in lines. Line filters capture solids, oil aerosols, and vapors, protecting downstream tools and processes from wear and blockages.
Untreated air causes corrosion, reduced efficiency, and product contamination in industries. Proper treatment boosts system longevity and cuts costs by extending machinery life, minimizing breakdowns, and optimizing energy use
During compression, ambient air is concentrated along with its contaminants. Common impurities include:
If left untreated, these contaminants can compromise system efficiency, cause unexpected downtime, and escalate maintenance requirements.
Refrigerant air dryers use a cooling process to remove moisture from compressed air. The air is passed through a heat exchanger where it is cooled by a refrigerant. As the air temperature drops, water vapour condenses into liquid droplets, which are then separated and drained away. The dried air is reheated before exiting the dryer, minimising the risk of condensation downstream.
Refrigerant air dryers are widely used in industries where a moderate dew point (typically around +3°C) is sufficient. Common applications include automotive workshops, manufacturing plants, and packaging lines.
Desiccant air dryers, also known as adsorption dryers, use hygroscopic materials (such as activated alumina or silica gel) to adsorb moisture from compressed air. There are two main types:
The dryers typically operate in twin-tower configurations, allowing continuous drying and regeneration cycles.
Desiccant air dryers are essential in pharmaceuticals, electronics, food and beverage, and any industry requiring ultra-dry air to prevent corrosion, spoilage, or product defects.

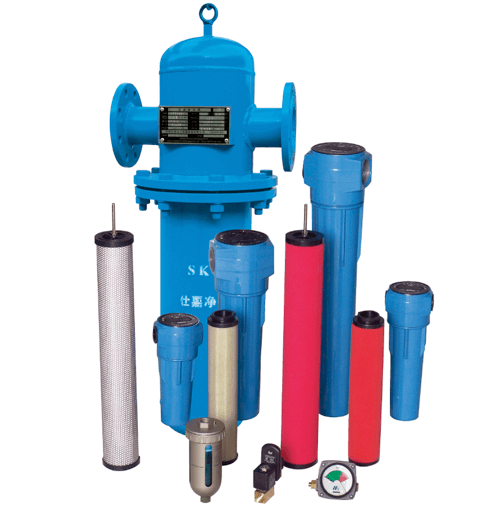

Line filters are designed to remove solid and liquid contaminants from compressed air. The main types include:
Filters use various mechanisms such as direct interception, inertial impaction, and diffusion to capture contaminants. High-quality line filters ensure that downstream equipment receives clean, contaminant-free air, protecting sensitive tools and processes.
Moisture separators, also known as water separators, are installed immediately after the compressor or cooler. They use centrifugal or mechanical separation to remove bulk water droplets from the air stream. The separated water is collected in a sump and discharged via a drain valve.
By removing large volumes of liquid water, moisture separators reduce the load on downstream air dryers and filters, enhancing the overall efficiency and reliability of the air treatment system.
After-coolers are heat exchangers that cool compressed air leaving the compressor. As the air cools, water vapour condenses into liquid form, which can then be easily separated and drained. The most common types are air-cooled and water-cooled after-coolers.
By lowering the temperature of compressed air, after-coolers significantly reduce the moisture content, protecting subsequent components and improving the efficiency of air dryers and filters
Auto drain valves automatically discharge accumulated water and contaminants from moisture separators, filters, and receivers. This automation eliminates the need for manual draining, ensuring consistent removal of condensate and preventing water carryover into the system
Automated draining reduces the risk of human error, minimises maintenance requirements, and helps prevent corrosion and damage to downstream equipment.
Compressed air treatment accessories are essential for delivering clean, dry, and reliable air to industrial processes. Each accessory—refrigerant air dryers, desiccant air dryers, line filters, moisture separators, after-coolers, and auto drain valves—plays a unique role in controlling and eliminating contaminants. When selecting accessories, consider factors such as required dew point, contaminant levels, process sensitivity, operating environment, and maintenance capabilities. Properly designed and maintained air treatment systems enhance operational efficiency, reduce downtime, prolong equipment life, and ensure product quality across a wide range of industries.
